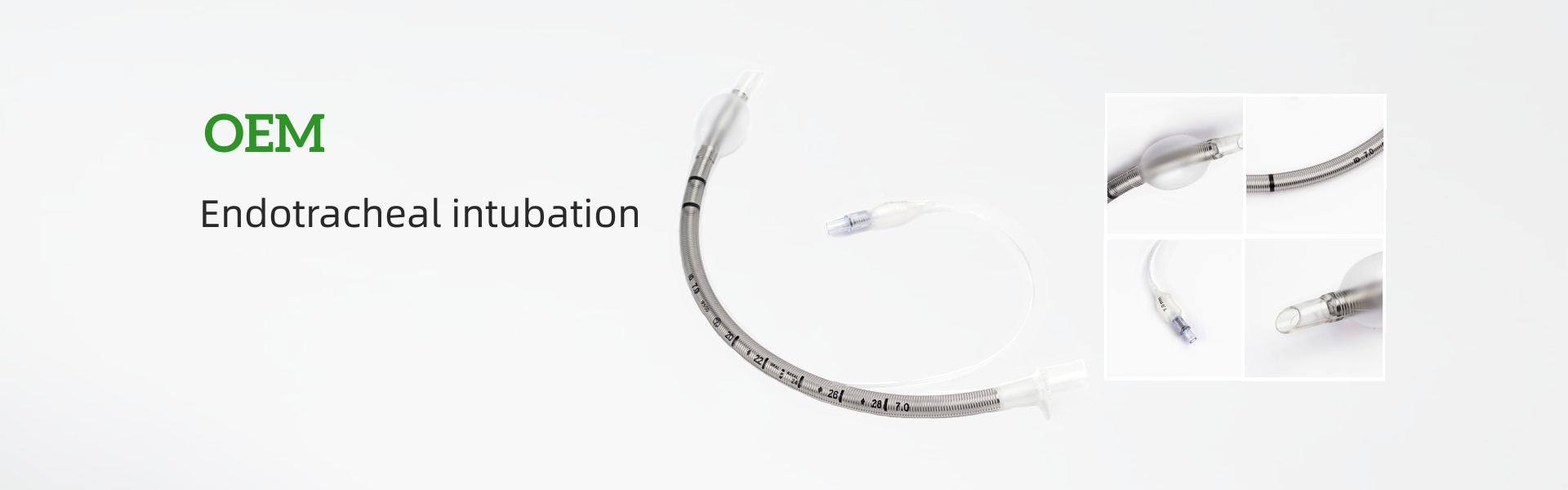

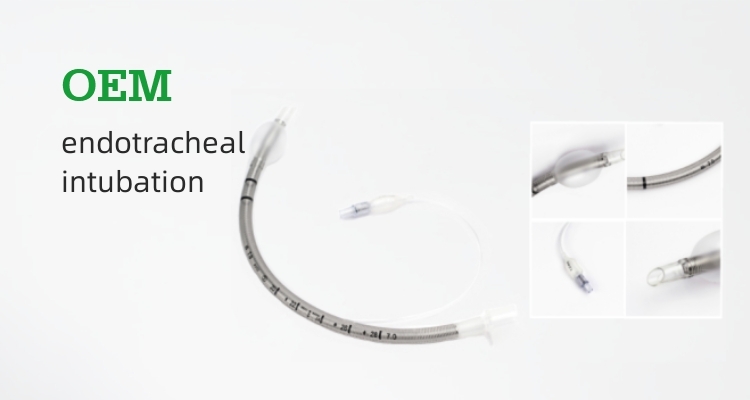

High Performance Disposable Reinforced Respiratory Endotracheal Tube with Braided Shaft

Description

Disposable reinforced respiratory endotracheal tube.

Application

For establishing an artificial airway and maintaining respiratory patency during clinical anesthesia, emergency resuscitation, ICU care and surgical procedures. It is used for mechanical ventilation, oxygen supply and airway management. The reinforced braided shaft provides excellent kink resistance, suitable for head‑neck surgery, prone‑position surgery, long‑term intubation and emergency transportation.

Product features:

The soft and elastic PVC material can keep the interior and wire spring from deforming.

02
The airbag has excellent sealing performance to ensure effective ventilation of the airway.

03
The transparent main tube has clear markings.

Specification

SIZE	ID（mm）	OD（mm）	LENGTH
ID 2.0mm	2.0±0.15	3.5±0.15	185±10
ID 2.5 mm	2.5±0.15	3.8±0.15	190±10
ID 3.0 mm	3.0±0.15	4.5±0.15	200±10
ID 3.5 mm	3.5±0.15	5.0±0.15	210±10
ID 4.0 mm	4.0±0.15	5.5±0.15	230±10
ID 4.5 mm	4.5±0.15	6.2±0.15	275±10
ID 5.0 mm	5.0±0.15	7.0±0.15	300±10
ID 5.5 mm	5.5±0.15	7.8±0.15	310±10
ID 6.0 mm	6.0±0.15	8.3±0.15	320±10
ID 6.5 mm	6.5±0.2	8.8±0.2	350±10
ID 7.0 mm	7.0±0.2	9.5±0.2	355±10
ID 7.5 mm	7.5±0.2	10.0±0.2	355±10
ID 8.0 mm	8.0±0.2	10.7±0.2	355±10
ID 8.5 mm	8.5±0.2	11.5±0.2	355±10
ID 9.0 mm	9.0±0.2	12.3±0.2	355±10
ID 9.5 mm	9.5±0.2	13.0±0.2	355±10
ID 10.0 mm	10.0±0.2	13.3±0.2	355±10
