Description

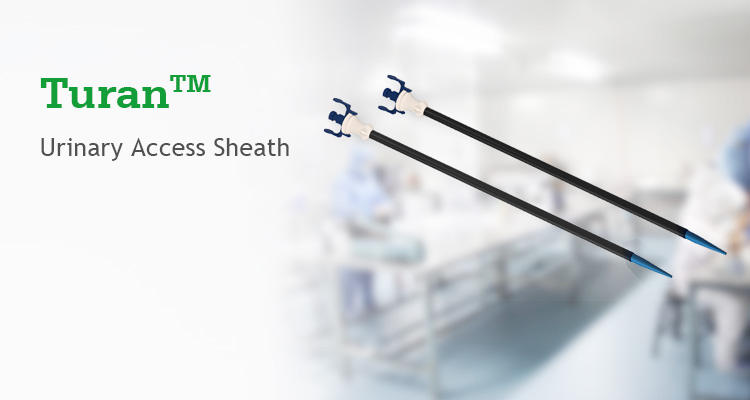

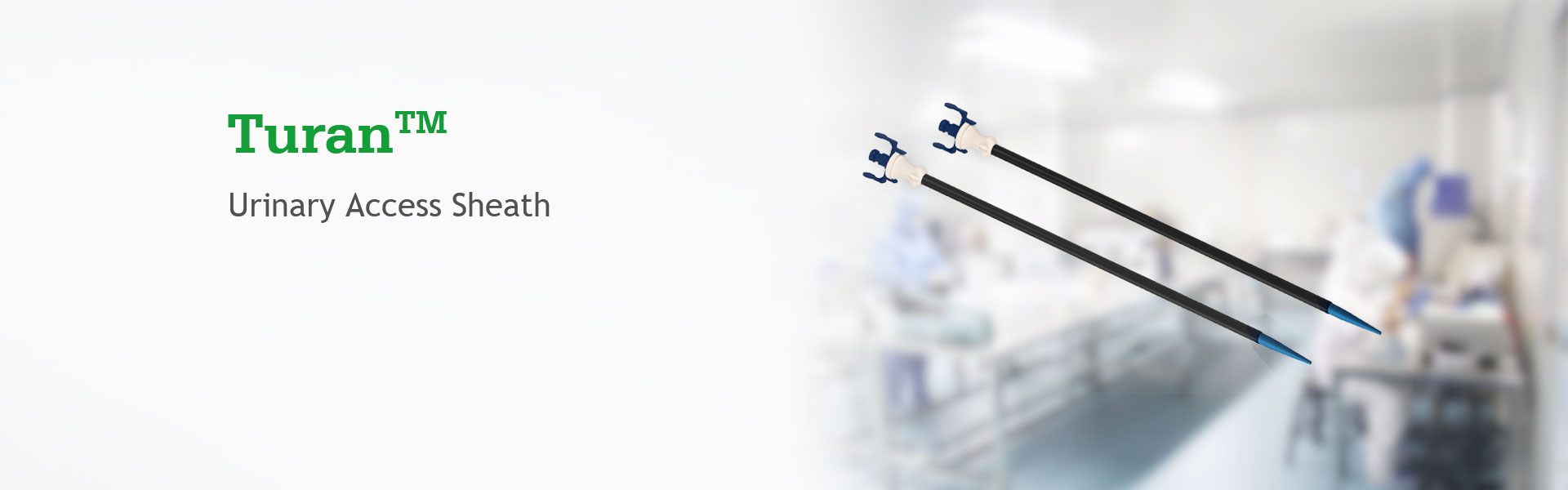

The ureteral access sheath provides dilation and working channel for the entry of ureteroscopes and instrument. It is intended to protect the ureter from trauma during repeated instrument exchanges during ureteroscopy procedures.
    • Features
      01
      PTFE liner facilitates the entry of ureteroscopes and instruments
    • 02
      Kink Resistance: Sheath is reinforced with stainless steel coil, designed provide stability and strength during placement
    • 03
      Radiopaque stainless coil facilitates placement of the sheath under X-Ray
    • 04
      Hydrophilic coated sheath offers lubricity during placement minimizing the risk of trauma



Specification

Order No.

Size

Effective Length

Internal Diameter(mm)

External Diameter(mm)


(mm)


±0.15


±0.15

71026501 10Fr*265mm 265 3.3 4
71026501 10Fr*365mm 365 3.3 4
71026501 10Fr*415mm 415 3.3 4
71026501 10Fr*465mm 465 3.3 4
71026501 10Fr*565mm 565 3.3 4
71026501 12Fr*265mm 265 4.1 4.7
71026501 12Fr*365mm 365 4.1 4.7
71026501 12Fr*415mm 415 4.1 4.7
71026501 12Fr*465mm 465 4.1 4.7
71026501 12Fr*565mm 565 4.1 4.7
71026501 13Fr*265mm 265 4.35 5
71026501 13Fr*365mm 365 4.35 5
71026501 13Fr*415mm 415 4.35 5
71026501 13Fr*465mm 465 4.35 5
71026501 13Fr*565mm 565 4.35 5
71026501 14Fr*265mm 265 4.7 5.3
71026501 14Fr*365mm 365 4.7 5.3
71026501 14Fr*415mm 415 4.7 5.3
71026501 14Fr*465mm 465 4.7 5.3
71026501 14Fr*565mm 565 4.7 5.3



Certificate
CE, CFDA approved
